IQ1C140 (LD1817)

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Power Technology Inc..

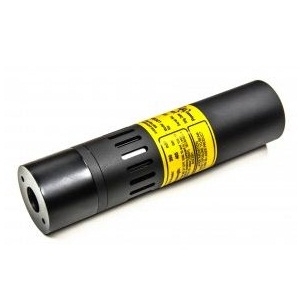

The IQ1C140 (LD1817) from Power Technology Inc. is a Laser with Wavelength 643 nm, Power 140 mW, Output Power (CW) 140 mW, Operating Temperature 15 to 35 Degree C. More details for IQ1C140 (LD1817) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IQ1C140 (LD1817)
  • Manufacturer
    Power Technology Inc.
  • Description
    Instrument Quality Laser 660nm 125mW

General Parameters

  • Type
    Laser Module
  • Configuration
    OEM Laser Module
  • Application Industry
    Entertainment, Scientific / Research
  • Application
    Laser Projectors, Metrology, Microscopy, Fluorescence, DNA Sequencing, Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    643 nm
  • Power
    140 mW
  • Output Power (CW)
    140 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Red
  • Polarization Orientation
    Linear
  • Beam Divergence :
    0.78 x 0.42 mrad
  • Beam Shape
    Elliptical
  • Current
    450 to 3000 mA
  • Pointing Stability :
    6 µRad/°C
  • Voltage
    5 to 8 VDC

Physical Properties

  • Dimension
    6.05” x Ø1.50”
  • Weight
    0.55 Kg
  • Beam Area
    Collimated Beam Size: 1.05 x 1.99 1/e²

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
