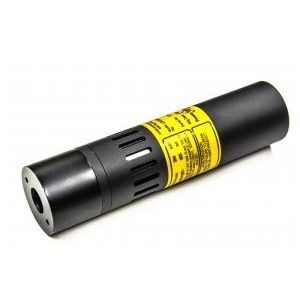

IQ1C190(LD2024)G35A

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Power Technology Inc..

The IQ1C190(LD2024)G35A from Power Technology Inc. is a Laser with Wavelength 488 nm, Power 190 mW, Output Power (CW) 190 mW, Operating Temperature 15 to 35 Degree C. More details for IQ1C190(LD2024)G35A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IQ1C190(LD2024)G35A
  • Manufacturer
    Power Technology Inc.
  • Description
    Instrument Quality Laser 488nm 190mW Learn More

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Entertainment, Scientific / Research
  • Application
    Laser Projectors, Metrology, Microscopy, Fluorescence, DNA Sequencing, Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Power
    190 mW
  • Output Power (CW)
    190 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi-Mode
  • Laser Color
    Blue
  • Beam Divergence :
    0.62 x 0.23 mrad
  • Beam Shape
    Elliptical
  • Current
    3000 mA
  • Pointing Stability :
    6 µRad/°C
  • Voltage
    8 VDC

Physical Properties

  • Dimension
    1.50 x 6.05 in / 38 x 154 mm (Length x Diameter)
  • Weight
    0.55 Kg
  • Beam Area
    1.11 x 2.79 mm2

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
