IQ1C30(LD1318)G36B

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Power Technology Inc..

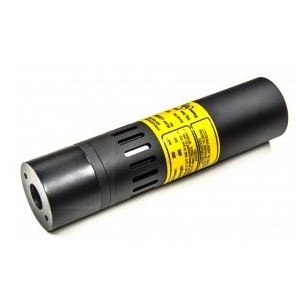

The IQ1C30(LD1318)G36B from Power Technology Inc. is a Laser with Wavelength 690 nm, Power 30 mW, Output Power (CW) 30 mW, Operating Temperature 15 to 35 Degree C. More details for IQ1C30(LD1318)G36B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IQ1C30(LD1318)G36B
  • Manufacturer
    Power Technology Inc.
  • Description
    Instrument Quality Laser 690nm 30mW Learn More

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace
  • Operation Mode
    CW Laser
  • Wavelength
    690 nm
  • Power
    30 mW
  • Output Power (CW)
    30 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Red
  • Polarization Orientation
    Linear
  • Beam Divergence :
    0.78 x 0.38 mrad
  • Beam Shape
    Elliptical
  • Current
    3000 mA
  • Pointing Stability :
    6 µRad/°C
  • Voltage
    5 VDC

Physical Properties

  • Dimension
    1.50 x 6.05 in / 38 x 154 mm (Length x Diameter)
  • Weight
    0.55 Kg
  • Beam Area
    Collimated Beam Size: 1.13 x 2.31 mm2

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
