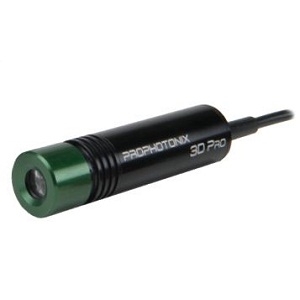

3D PRO Laser Green

Laser by ProPhotonix

Note: Your Quotation Request will be directed to ProPhotonix.

The 3D PRO Laser Green from ProPhotonix is a Laser with Wavelength 520 nm, Power 5 to 35 mW, Output Power (CW) 5 to 35 mW, Operating Temperature 0 to 40 Degree C, Storage Temperature -10 to 80 Degree C. More details for 3D PRO Laser Green can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    3D PRO Laser Green
  • Manufacturer
    ProPhotonix
  • Description
    Structured Light Laser Diode Module

General Parameters

  • Configuration
    Laser Head
  • Type
    Laser Module
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Power
    5 to 35 mW
  • Output Power (CW)
    5 to 35 mW
  • Spectral Width
    30 µm
  • Application
    Machine Vision, 3D measurement, Dimensional scanning, High precision alignment, pointing, positioning, Automated inspection
  • Application Industry
    Imaging, Test & Measurement / Instrumentation, Alignment, Aerospace & Defense, Inspection / Analysis / Detection, Automotive
  • Current
    Up to 200 mA
  • Digital Modulation
    TTL, 0-5V DC up to 1MHz
  • Analog Modulation
    0 - 3.3VDC, DC up to 100kHz
  • Power Stability
    ±5%
  • Voltage
    9 VDC
  • Note
    Housing Material: Anodized Aluminum, Fan Angle: 10 to 90 Degree

Physical Properties

  • Weight
    45 g
  • Beam Diameter
    19 mm

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 80 Degree C
