EverGreen HP 200-50-S

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quantel laser by LUMIBIRD.

The EverGreen HP 200-50-S from Quantel laser by LUMIBIRD is a Laser with Wavelength 532 nm, Pulse Energy 50 mJ, Pulse Width 15 ns, Repetition Rate 200 Hz. More details for EverGreen HP 200-50-S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EverGreen HP 200-50-S
  • Manufacturer
    Quantel laser by LUMIBIRD
  • Description
    The EverGreen HP (High Power) is a dual pulsed laser for PIV applications

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Particle Image Velocimetry (PIV)
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Pulse Energy :
    50 mJ
  • Pulse Energy
    50 mJ
  • Pulse Width
    15 ns
  • Repetition Rate
    200 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi-Mode
  • Laser Color
    Green
  • Warm up time
    Lifetime: 100 million shots lamp
  • RoHS
    Yes

Physical Properties

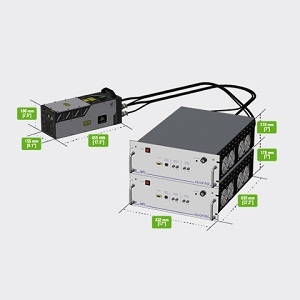

  • Laser Head Dimension
    186 x 455 x 155 [7.3 x 17.9 x 6.1
  • Laser Head Weight
    11.1 kg(24.5 lbs)

Environmental Conditions

  • Cooling Method
    Air-cooled, Water-cooled

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
