VIR20-30-G-1064

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quantel laser by LUMIBIRD.

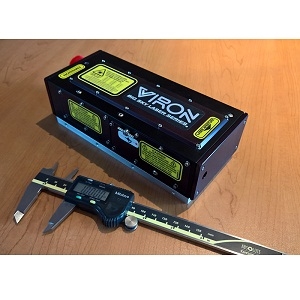

The VIR20-30-G-1064 from Quantel Laser is a compact pulsed diode-pumped solid-state laser that operates at 1064 nm. It delivers pulse energy of up to 30 mJ at 1064 nm in 8 nanoseconds pulse with a repetition rate of 20 Hz. The laser requires an external 24 V DC standar power supply for operation. The laser head and the control electronics are integrated into one housing.

Product Specifications

View similar products

Product Details

  • Part Number
    VIR20-30-G-1064
  • Manufacturer
    Quantel laser by LUMIBIRD

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace
  • Application
    Spectroscopy, Fluorescence, Microscopy, DNA Sequencing, LiDAR
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.064 µm
  • Pulse Energy :
    30 mJ
  • Pulse Energy
    30 mJ
  • Pulse Width
    8 ns
  • Repetition Rate
    20 Hz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Power Supply
    24 VDC, 250 W
  • RoHS
    Yes

Physical Properties

  • Dimension
    195 x 89 x 59 mm (7.67 x 3.50 x 2.32 inch)
  • Weight
    1.7 kg (3.7 lbs.)
  • Beam Diameter
    4 mm

Environmental Conditions

  • Cooling Method
    Air-cooled
