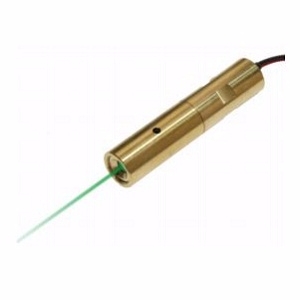

VLM-532-43 SPT

Laser by Quarton Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Quarton Inc.

The VLM-532-43 SPT from Quarton Inc is a Laser with Wavelength 532 nm, Power 0.001 W (1 mW), Output Power (CW) 0.001 W (1 mW), Operating Temperature 15 to 35 Degree C, Storage Temperature -40 to 70 Degree C. More details for VLM-532-43 SPT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VLM-532-43 SPT
  • Manufacturer
    Quarton Inc
  • Description
    VLM-532-43 Series Green Laser, Quarton Laser Module - Industrial Use Green Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Defense / Military & Aerospace, Automotive / Industrial & Manufacturing, Medical
  • Application
    Targeting, Surveillance, Material processing, Laser Surgery, Dermatology, Oncology, Ophthalmology
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    0.001 W (1 mW)
  • Output Power (CW)
    0.001 W (1 mW)
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.3 mRad
  • Beam Shape
    Spot, Dot
  • Current
    300 mA
  • Voltage
    2.7 to 3.3 VDC
  • Note
    MTTF: 3000 hrs, ConnectionType: Spring

Physical Properties

  • Dimension
    13 x 60 mm(0.512" x 2.362")
  • Fiber length
    4 ±1mm@5m 18 ±2mm@30m

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -40 to 70 Degree C
