CW532-050L

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

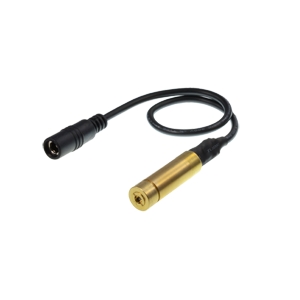

The CW532-050L from Roithner Lasertechnik is a Laser with Wavelength 532 nm, Power 50 mW, Output Power (CW) 50 mW, Operating Temperature 15 to 30 Degree C, Storage Temperature 20 to 80 Degree C. More details for CW532-050L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CW532-050L
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    50 mW
  • Output Power (CW)
    50 mW
  • Technology
    DPSS Laser, Solid State Laser
  • Fiber Coupled
    Yes
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Laser
  • Beam Shape
    Line
  • Current
    600 mA
  • Laser Class
    Class IIIB
  • Warm up time
    3 s
  • Voltage
    3 VDC
  • RoHS
    Yes

Physical Properties

  • Dimension
    12 x 40 (58) mm
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    20 to 80 Degree C
