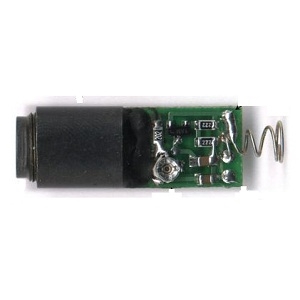

The DT650-2.5-3 from Roithner Lasertechnik is a Laser with Wavelength 650 nm, Power 3 mW, Output Power (CW) 3 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DT650-2.5-3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DT650-2.5-3
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    3 mW
  • Output Power (CW)
    3 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Beam Shape
    Dot
  • Voltage
    3 VDC

Physical Properties

  • Dimension
    10.5 x 28 mm
  • Beam Diameter
    10.5 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
