RLDH808M-120-5

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

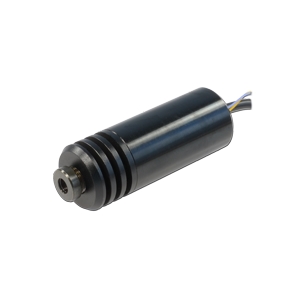

The RLDH808M-120-5 from Roithner Lasertechnik is a Laser with Wavelength 808 nm, Power 120 mW, Output Power (CW) 120 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for RLDH808M-120-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLDH808M-120-5
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Power
    120 mW
  • Output Power (CW)
    120 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Beam Shape
    Dot
  • Current
    400 mA
  • Laser Class
    Class IIIB
  • Voltage
    5 VDC
  • RoHS
    Yes

Physical Properties

  • Dimension
    22 x 65 mm

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
