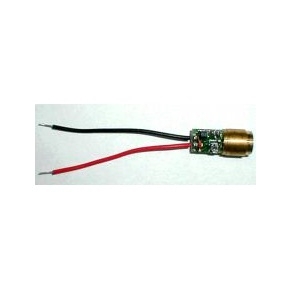

The RLM-650-A-1 from Roithner Lasertechnik is a Laser with Wavelength 650 nm, Power 1 to 2 mW, Output Power (CW) 1 to 2 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for RLM-650-A-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLM-650-A-1
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    1 to 2 mW
  • Output Power (CW)
    1 to 2 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Beam Shape
    Dot
  • Current
    30 to 40 mA
  • Voltage
    3.0 to 4.5 VDC

Physical Properties

  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
