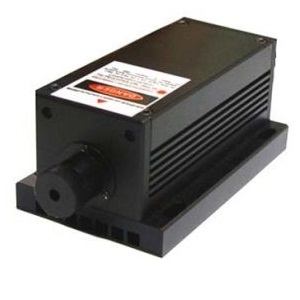

RLTMGL-515-10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLTMGL-515-10 from Roithner Lasertechnik is a Laser with Wavelength 515 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature 10 to 35 Degree C. More details for RLTMGL-515-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLTMGL-515-10
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    515 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Technology
    DPSS Laser
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Connectors
    SMA-905/FC
  • Warm up time
    10 min
  • Power Supply
    90 to 260VAC(PSU to FDA)
  • Voltage
    90 to 260VAC(PSU to FDA)
  • RoHS
    YeS

Physical Properties

  • Laser Head Dimension
    212 x 88 x 74 mm
  • Power Supply Dimension
    154 x 155 x 95 mm, 133 x 130 x 65 mm, 100 x 60 x 56 mm
  • Beam Diameter
    3.0 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
