RLTMLL-671-5W

768 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

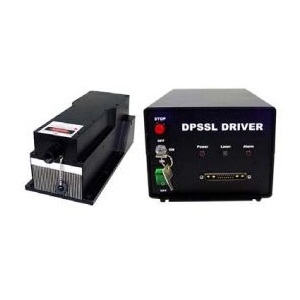

The RLTMLL-671-5W from Roithner Lasertechnik is a Laser with Wavelength 671 nm, Power 5 W, Output Power (CW) 5 W, Operating Temperature 10 to 35 Degree C. More details for RLTMLL-671-5W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLTMLL-671-5W
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Entertainment
  • Application
    DNA Sequencing, Flow Cytometry, Solar cell, Chip Inspection, Holography
  • Operation Mode
    CW Laser
  • Wavelength
    671 nm
  • Power
    5 W
  • Output Power (CW)
    5 W
  • Technology
    DPSS Laser
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Transverse Mode
    TEM00
  • Connectors
    SMA-905/FC
  • Warm up time
    15 min
  • Power Supply
    80 to 250 VAC(PSU to FDA)
  • Voltage
    80 to 250 VAC(PSU to FDA)
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    333 x 140 x 125 mm
  • Power Supply Dimension
    307 x 168 x 123 mm³, 5.1 kg
  • Beam Diameter
    4.0 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
