RLTMRL-III-655R-100

768 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

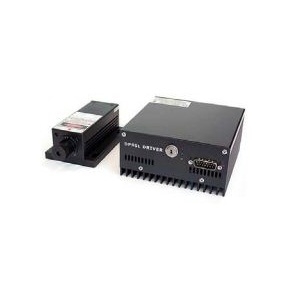

The RLTMRL-III-655R-100 from Roithner Lasertechnik is a Laser with Wavelength 655 nm, Power 100 mW, Output Power (CW) 100 mW, Operating Temperature 10 to 35 Degree C. More details for RLTMRL-III-655R-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLTMRL-III-655R-100
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    655 nm
  • Power
    100 mW
  • Output Power (CW)
    100 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Shape
    Round
  • Connectors
    SMA-905/FC
  • Warm up time
    5 min
  • Modulation Frequency
    1 to 30 kHz
  • Power Supply
    90 to 260VAC (PSU to FDA)
  • Voltage
    90 to 260VAC (PSU to FDA)

Physical Properties

  • Laser Head Dimension
    141 x 46 x 73 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
