G6D6W

Request Quote

Note: Your Quotation Request will be directed to Semiconductor Laser Development.

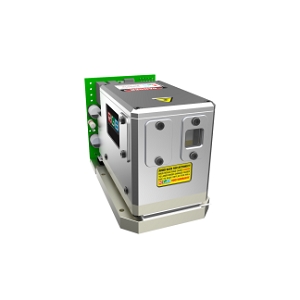

The G6D6W from Semiconductor Laser Development is a Laser with Wavelength 520 nm, Power 6000 mW, Output Power (CW) 6000 mW. More details for G6D6W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G6D6W
  • Manufacturer
    Semiconductor Laser Development

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    6000 mW
  • Output Power (CW)
    6000 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multimode
  • Laser Color
    Green
  • Polarization
    Horizontal, Vertical
  • Beam Divergence :
    1.2 mrad
  • Current
    18 A
  • Analog Modulation
    1 MHz
  • Power Consumption
    216 W
  • Voltage
    12 V

Physical Properties

  • Beam Diameter
    3.5 x 5.4 mm
