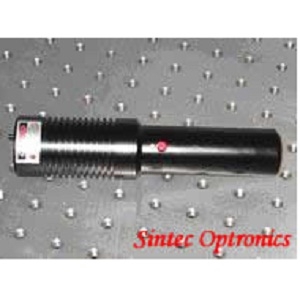

ST-532-VBP-I/II/III

Laser by Sintec Optronics
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The ST-532-VBP-I/II/III from Sintec Optronics is a Laser with Wavelength 532 nm, Power 0.001 to 0.25 W, Output Power (CW) 0.001 to 0.25 W, Operating Temperature 18 to 30 Degree C. More details for ST-532-VBP-I/II/III can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ST-532-VBP-I/II/III
  • Manufacturer
    Sintec Optronics
  • Description
    Diode End Pumped Solid-state Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Spectral Width :
    0.1 nm
  • Power
    0.001 to 0.25 W
  • Output Power (CW)
    0.001 to 0.25 W
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.2 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    15 min
  • Modulation Frequency
    30KHz TTL / 10KHz

Physical Properties

  • Beam Diameter
    1.2±0.2 mm

Environmental Conditions

  • Operating Temperature
    18 to 30 Degree C
Click to view more product details on manufacturer's website
