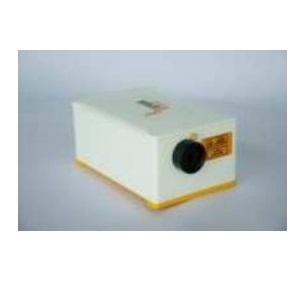

VEGA-Micro-IR

Laser by Spark Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Spark Lasers.

The VEGA-Micro-IR from Spark Lasers is a Laser with Wavelength 1064 nm, Power 12 W, Output Power (Pulsed) 12 W, Pulse Width 120 ps, Repetition Rate 600 kHz. More details for VEGA-Micro-IR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VEGA-Micro-IR
  • Manufacturer
    Spark Lasers
  • Description
    Ultra-compact high-energy picosecond fiber laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Medical
  • Application
    Laser Ablation, Atomic & Molecular Physics, Medical imaging, Bio-Medical
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Spectral Width :
    0.3 nm
  • Power
    12 W
  • Output Power (Pulsed)
    12 W
  • Pulse Width
    120 ps
  • Repetition Rate
    600 kHz
  • Pulse to Pulse Stability
    Pulse stability:<2% RMS
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Gain Medium Type
    Solid State Laser
  • Power Consumption
    < 400 W
  • Power Stability
    2% RMS
  • Pointing Stability :
    <25 µrad/ Degree C
  • Power Supply
    100 to 240 VAC

Physical Properties

  • Package
    Rack-Mount
  • Laser Head Dimension
    100 x 158 x 71 mm
  • Power Supply Dimension
    19"/3U rack
  • Beam Diameter
    1 mm
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air cooled
