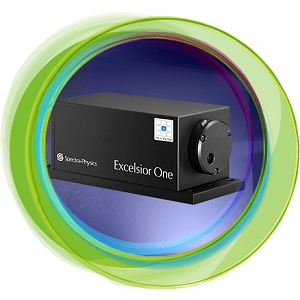

Excelsior One 488-FC

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Spectra-Physics.

The Excelsior One 488-FC from MKS | Spectra-Physics is a Laser with Wavelength 488 nm, Power 70 mW, Output Power (CW) 70 mW, Operating Temperature 10 to 40 Degree C, Storage Temperature -20 to 60 Degree C. More details for Excelsior One 488-FC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Excelsior One 488-FC
  • Manufacturer
    MKS | Spectra-Physics
  • Description
    Fiber Coupled 405-532 nm, 70 mW

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Flow Cytometry, Microscopy, Fluorescence, Spectroscopy, DNA Sequencing, Interferometry, Inspection & Measurement, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Spectral Width :
    1.5 nm
  • Power
    70 mW
  • Output Power (CW)
    70 mW
  • Technology
    Direct Diode Laser, DPSS Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Mode
    Multi Mode
  • Laser Color
    Blue
  • Transverse Mode
    TEM00
  • Connectors
    FC/APC or FC/AFC (optional)
  • Warm up time
    5 min
  • Power Consumption
    10 W
  • Power Stability
    1%, 3%
  • Numerical Aperture
    0.07-0.1
  • RMS Noise Power
    0.5% rms
  • Voltage
    5 VDC

Physical Properties

  • Dimension
    3.94 x 1.57 x 1.57 Inch(100 x 40 x 40 mm)
  • Fiber diameter
    4.0 ±0.7 µm
  • Fiber length
    1 m

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
