Excelsior One 553

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Spectra-Physics.

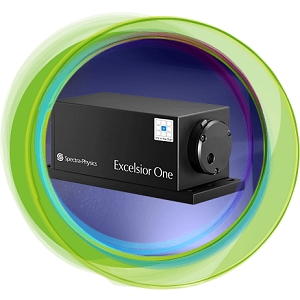

The Excelsior One 553 from MKS | Spectra-Physics is a Laser with Wavelength 553 nm, Power 50 to 100 mW, Output Power (CW) 50 to 100 mW, Operating Temperature 10 to 40 Degree C, Storage Temperature -20 to 60 Degree C. More details for Excelsior One 553 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Excelsior One 553
  • Manufacturer
    MKS | Spectra-Physics
  • Description
    INNOVATIVE DIRECT DIODE AND DPSS LASERS, 50 to 100 mW, 553 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Flow Cytometry, Microscopy, Fluorescence, Spectroscopy, DNA Sequencing, Interferometry, Inspection & Measurement, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    553 nm
  • Spectral Width :
    0.01 pm
  • Power
    50 to 100 mW
  • Output Power (CW)
    50 to 100 mW
  • Technology
    Direct Diode Laser, DPSS Laser
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.2 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    5 min
  • Power Consumption
    35 W
  • Power Stability
    ±2%
  • Pointing Stability :
    6 µrad/°C
  • RMS Noise Power
    0.3% rms
  • Voltage
    5 VDC

Physical Properties

  • Dimension
    3.94 x 1.57 x 1.57 Inch(100 x 40 x 40 mm)
  • Beam Area
    Beam Height: 19 mm
  • Beam Diameter
    0.7 ±0.07 mm

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
