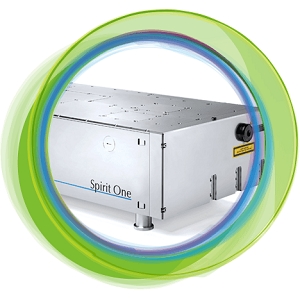

Spirit One 1040-8-SHG

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Spectra-Physics.

The Spirit One 1040-8-SHG from MKS | Spectra-Physics is a Laser with Wavelength 520 nm, Power 4 W, Output Power (Pulsed) 4 W, Pulse Energy 20 µJ, Pulse Width 400 fs. More details for Spirit One 1040-8-SHG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Spirit One 1040-8-SHG
  • Manufacturer
    MKS | Spectra-Physics
  • Description
    The Spirit One High average power (up to 8 W) and high pulse energy (40 µJ), Integrated pulse-picker with analog-in triggering

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Medical, Scientific / Research
  • Application
    Laser surgery, Diagnosis, Imaging, DNA Sequencing, Microscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    520 nm
  • Wavelength Accuracy
    ±3 nm
  • Power
    4 W
  • Output Power (Pulsed)
    4 W
  • Pulse Energy :
    20 µJ
  • Pulse Energy
    20 µJ
  • Pulse Width
    400 fs
  • Repetition Rate
    200 KHz to 1 MHz
  • Pulse to Pulse Stability
    2% rms
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.5 mrad
  • Current
    16 A
  • Warm up time
    15 min
  • Modulation Frequency
    50 to 60 Hz
  • Power Stability
    1% rms
  • Voltage
    100-240 V, 50 Hz / 60 Hz

Physical Properties

  • Laser Head Dimension
    29.1 x 12.2 x 5.2 in (740 x 310 x 133 mm)
  • Laser Head Weight
    99 lb (45 kg)
  • Power Supply Dimension
    19.0 x 15.8 x 10.5 in (484 x 400 x 267 mm)
  • Power Supply Weight
    68 lb (31 kg)
  • Beam Diameter
    2 mm

Environmental Conditions

  • Relative Humidity
    65% (Non-Condensing)
  • Operating Temperature
    18 to 30 Degree C
