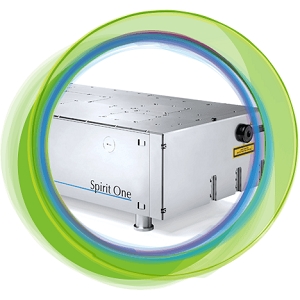

Spirit One ps 1040-10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Spectra-Physics.

The Spirit One ps 1040-10 from MKS | Spectra-Physics is a Laser with Wavelength 1040 nm, Power 10 W, Output Power (Pulsed) 10 W, Pulse Energy 50 µJ, Pulse Width 15 ps. More details for Spirit One ps 1040-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Spirit One ps 1040-10
  • Manufacturer
    MKS | Spectra-Physics
  • Description
    he Spirit One ps advantage highest finesse, 15 ps pulse width for picosecond micromachining, exceptional beam quality (M² 1.2)

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental
  • Application
    Machine Vision, Material processing, Marking, Laser Ablation, Sensing, Imaging, Cladding, Structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1040 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    10 W
  • Output Power (Pulsed)
    10 W
  • Pulse Energy :
    50 µJ
  • Pulse Energy
    50 µJ
  • Pulse Width
    15 ps
  • Repetition Rate
    200 KHz to 1 MHz
  • Pulse to Pulse Stability
    2% rms
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Current
    16 A
  • Warm up time
    15 min
  • Modulation Frequency
    50 to 60 Hz
  • Power Stability
    1% rms
  • Power Supply
    100 to 240 VAC
  • Voltage
    100-240 VAC, 50/60 Hz

Physical Properties

  • Laser Head Dimension
    26.2 x 12.2 x 5.2 in (665 x 310 x 133 mm)
  • Laser Head Weight
    88 lbs (40 kg)
  • Power Supply Dimension
    19.0 x 15.8 x 10.5 in (483 x 400 x 267 mm)
  • Power Supply Weight
    68 lbs (31 kg)
  • Beam Diameter
    2 mm

Environmental Conditions

  • Relative Humidity
    65% (Non-Condensing)
  • Operating Temperature
    18 to 30 Degree C
