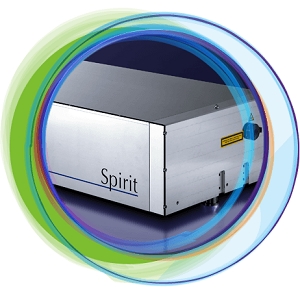

Spirit ps 1040-10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Spectra-Physics.

The Spirit ps 1040-10 from MKS | Spectra-Physics is a Laser with Wavelength 1040 nm, Power 10 W, Output Power (Pulsed) 10 W, Pulse Energy 50 µJ, Pulse Width 15 ps. More details for Spirit ps 1040-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Spirit ps 1040-10
  • Manufacturer
    MKS | Spectra-Physics
  • Description
    The Spirit ps advantage highest finesse 15 ps pulse width for picosecond micromachining exceptional beam quality (M2 1-.2) high stability (1% rms over 100 hrs)

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental
  • Application
    Machine Vision, Material processing, Laser Ablation, Sensing, Imaging, Cladding, Structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1040 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    10 W
  • Output Power (Pulsed)
    10 W
  • Pulse Energy :
    50 µJ
  • Pulse Energy
    50 µJ
  • Pulse Width
    15 ps
  • Repetition Rate
    200 KHz to 1 MHz
  • Pulse to Pulse Stability
    2% rms
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Current
    16 A
  • Warm up time
    15 min
  • Modulation Frequency
    50 to 60 Hz
  • Power Stability
    0.5% to 1% rms
  • Voltage
    100-230 V, 50 Hz / 60 Hz

Physical Properties

  • Laser Head Dimension
    32.5 x 14 x 6.5 in (875 x 340 x 160 mm)
  • Laser Head Weight
    155 lbs (70 kg)
  • Power Supply Dimension
    23.6 x 21.8 x 28.7 in (600 x 533 x 730 mm)
  • Power Supply Weight
    176 lb (80 kg)
  • Beam Diameter
    2 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Relative Humidity
    65% (Non-Condensing)
  • Operating Temperature
    18 to 30 Degree C
