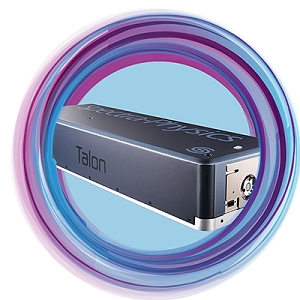

Talon HE 532-1000

Laser by Spectra-Physics

Note: Your Quotation Request will be directed to Spectra-Physics.

The Talon HE 532-1000 from Spectra-Physics is a Laser with Wavelength 532 nm, Power 10 to 15 W, Pulse Energy 100 to 750 µJ, Operating Temperature 18 to 35 Degree C, Storage Temperature -20 to 50 Degree C. More details for Talon HE 532-1000 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    Talon HE 532-1000
  • Manufacturer
    Spectra-Physics
  • Description
    DISRUPTIVE COST-PERFORMANCE UV LASERS

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Technology
    DPSS Laser, Q-Switched Laser
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Nanosecond Lasers
  • Wavelength
    532 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Power
    10 to 15 W
  • Pulse Energy
    100 to 750 µJ
  • Pulse Width
    25 to 40 ns
  • Application
    PCB de-paneling, cutting, and drilling, Solar cell processing, Silicon scribing, Ceramic scribing, cutting, and drilling, ITO patterning, Glass cutting and drilling, Metal foil cutting
  • Polarization
    Vertical
  • Repetition Rate
    0 to 150 kHz
  • Warm up time
    20 to 40 min.
  • Application Industry
    Semiconductors & Microelectronics, Industrial (Material Processing)
  • Beam Divergence
    0.9 mrad
  • Beam Quality Factor (M2)
    1.2
  • Transverse Mode
    TEM00
  • Modulation Frequency
    20 kHz
  • Power Consumption
    400 W
  • Pointing Stability
    ±10 µrad/Degree C
  • Pulse Energy
    100 to 750 µJ
  • Pulse to Pulse Stability
    3 % rms
  • Power Supply
    110 to 220 ±10% VAC, 50-60 Hz

Physical Properties

  • Laser Head Dimension
    635 x 153 x 115 mm
  • Laser Head Weight
    12.7 Kg
  • Power Supply Dimension
    498 x 482 x 88 mm
  • Power Supply Weight
    10 kg
  • Beam Diameter
    1.0 mm ±10%

Environmental Conditions

  • Relative Humidity
    8 to 95%
  • Operating Temperature
    18 to 35 Degree C
  • Storage Temperature
    -20 to 50 Degree C
