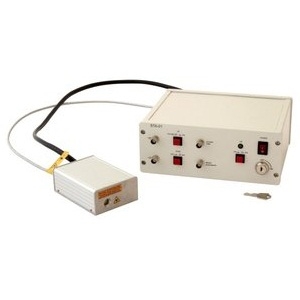

STANDA-Q1-SH

Laser by STANDA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to STANDA.

The STANDA-Q1-SH from STANDA is a Laser with Wavelength 532 nm, Pulse Energy 70 µJ, Pulse Width 1 ns, Repetition Rate 1 to 1000 Hz. More details for STANDA-Q1-SH can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STANDA-Q1-SH
  • Manufacturer
    STANDA
  • Description
    STANDA-Q1 - Active Q-switched Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Spectral Width :
    3.7 pm
  • Pulse Energy :
    70 µJ
  • Pulse Energy
    70 µJ
  • Pulse Width
    1 ns
  • Repetition Rate
    1 to 1000 Hz
  • Technology
    DPSS Laser, Q-Switched Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    SLM (Single Longitudinal Mode)
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Transverse Mode
    Spatial Mode: TEM00
  • Beam Divergence :
    5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Warm up time
    20 Minutes
  • Interface
    USB, External Trigger
  • Power Supply
    110-230 VAC
  • Voltage
    110-230 VAC

Physical Properties

  • Laser Head Dimension
    79 x 39 x 110 mm
  • Laser Head Weight
    750 g
  • Power Supply Dimension
    223 x 94 x 197 mm
  • Weight
    2750 g
  • Beam Diameter
    200 µm
