Pulse-532-05-Y

Request Quote

Note: Your Quotation Request will be directed to Suzhou Inngu Laser.

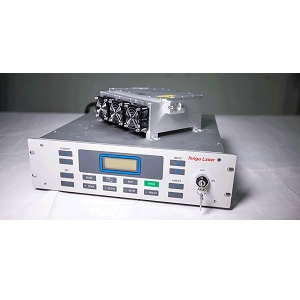

The Pulse-532-05-Y from Suzhou Inngu Laser is a Laser with Wavelength 532 nm, Power 2 to 5 W, Pulse Width 35 ns, Repetition Rate 1 to 150 KHz. More details for Pulse-532-05-Y can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Pulse-532-05-Y
  • Manufacturer
    Suzhou Inngu Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Etching, Marking, Trimming, Cutting, Scribing, Drilling
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    2 to 5 W
  • Pulse Width
    35 ns
  • Repetition Rate
    1 to 150 KHz
  • Pulse to Pulse Stability
    <3%rms
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    2 mrad
  • Power Stability
    <±3% Over 12 Hours
  • Pointing Stability :
    <50 urad
  • Power Supply
    90 to 260 VAC
  • Tags
    YAG/YLF Series Laser
  • Note
    Beam Roundness : >90%

Physical Properties

  • Beam Diameter
    0.7 mm

Environmental Conditions

  • Cooling Method
    Water Cooled, Air Cooled
