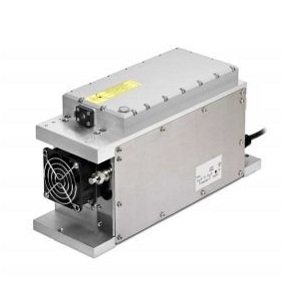

PNG-M04005-1x0

Laser by Teem Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teem Photonics.

The PNG-M04005-1x0 from Teem Photonics is a Laser with Wavelength 532 nm, Pulse Energy 35 µJ, Pulse Width 400 ps, Repetition Rate 0.5 kHz, Operating Temperature 20 to 35 Degree C. More details for PNG-M04005-1x0 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PNG-M04005-1x0
  • Manufacturer
    Teem Photonics
  • Description
    PNx High Peak Power Powerchip Series

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Medical, Environmental
  • Application
    Material processing, Drilling, Spectroscopy, Oncology, Microscopy, Fluorescence, Contaminant Detection
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Pulse Energy :
    35 µJ
  • Pulse Energy
    35 µJ
  • Pulse Width
    400 ps
  • Repetition Rate
    0.5 kHz
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green, Yellow
  • Polarization ratio :
    20 dB
  • Transverse Mode
    TEM00
  • Beam Divergence :
    5.0±1 mrad (Horizontal), 4.0±1 mrad(Vertical)
  • Power Consumption
    75 W
  • Power Stability
    ±3% rms(Short Term), ±3% rms(Long Term)
  • Peak Power
    80 kW
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    311 x 100 x 149 mm
  • Laser Head Weight
    5.5 kg
  • Dimension
    315 x 262 x 77 mm
  • Weight
    3 kg

Environmental Conditions

  • Operating Temperature
    20 to 35 Degree C
  • Storage Temperature
    0 to 50 Degree C
