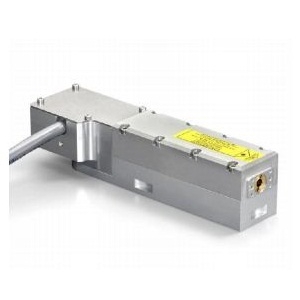

SNG-03E-100

Laser by Teem Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teem Photonics.

The SNG-03E-100 from Teem Photonics is a Laser with Wavelength 532 nm, Power 15 mW, Output Power (Pulsed) 15 mW, Pulse Energy 3 µJ, Pulse Width 0.75 ns. More details for SNG-03E-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SNG-03E-100
  • Manufacturer
    Teem Photonics
  • Description
    SNG High Performances Green Microchip Series

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Scientific / Research, Medical
  • Application
    Material processing, Communication & Navigation, LiDAR, Sensing, Spectroscopy, Laser Surgery
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    15 mW
  • Output Power (Pulsed)
    15 mW
  • Pulse Energy :
    3 µJ
  • Pulse Energy
    3 µJ
  • Pulse Width
    0.75 ns
  • Repetition Rate
    5 KHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green, Yellow
  • Polarization Orientation
    Linear
  • Polarization ratio :
    20 dB
  • Transverse Mode
    TEM00
  • Beam Divergence :
    10±2 mrad(Horizontal), 9±2 mrad(Vertical)
  • Power Consumption
    40 W
  • Power Stability
    ±1% rms(Short Term), ±3% rms(Long Term)
  • Peak Power
    4 kW
  • RoHS
    Yes
  • Note
    Laser Head Thermal Dissipation: 15 W

Physical Properties

  • Dimension
    115 x 29 x 35 mm
  • Weight
    250 g

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    0 to 50 Degree C
