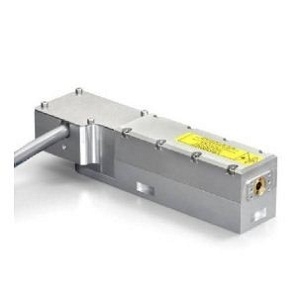

SNP-200P-100

Laser by Teem Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teem Photonics.

The SNP-200P-100 from Teem Photonics is a Laser with Wavelength 1064 nm, Power 200 mW, Output Power (Pulsed) 200 mW, Pulse Energy 11 µJ, Pulse Width 0.75 ns. More details for SNP-200P-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SNP-200P-100
  • Manufacturer
    Teem Photonics
  • Description
    SNP High Performances IR Microchip Series

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Scientific / Research, Medical
  • Application
    Material processing, Communication & Navigation, LiDAR, Sensing, Spectroscopy, Laser Surgery
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    200 mW
  • Output Power (Pulsed)
    200 mW
  • Pulse Energy :
    11 µJ
  • Pulse Energy
    11 µJ
  • Pulse Width
    0.75 ns
  • Repetition Rate
    19 KHz
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    15±3 mrad (Horizontal), 15±3 mrad (Vertical)
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Lasers
  • Power Consumption
    40 W
  • Power Stability
    ±1% rms(Short Term), ±3% rms(Long Term)
  • Peak Power
    14 kW
  • RoHS
    Yes
  • Note
    Laser Head Thermal Dissipation: 15 W

Physical Properties

  • Dimension
    145 x 42 x 36 mm
  • Weight
    300 g

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    0 to 50 Degree C
