HNL020RB

Laser by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The HNL020RB from Thorlabs Inc is a Laser with Wavelength 632.8 nm, Power 2 W, Output Power (CW) 2 W, Operating Temperature -40 to 70 °C. More details for HNL020RB can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HNL020RB
  • Manufacturer
    Thorlabs Inc
  • Description

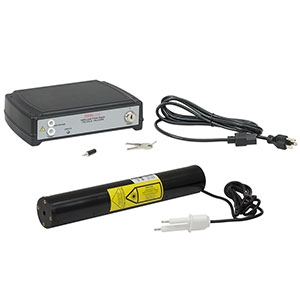

    HeNe Laser, 632.8 nm, 2 mW, Random, 100 - 240 VAC Power Supply

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Environmental, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace
  • Application
    Metrology, Monitoring, Food Sorting, Flow Cytometry, Microscopy, Imaging, Alignment, Communication & Navigation
  • Operation Mode
    CW Laser
  • Wavelength
    632.8 nm
  • Power
    2 W
  • Output Power (CW)
    2 W
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Polarization Orientation
    Random
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.3 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Helium-Neon
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Current
    6.5 mA
  • Laser Class
    Class IIIa/3R
  • Warm up time
    10 minutes
  • Pointing Stability :
    0.02 to 0.10 mrad
  • RMS Noise Power
    0.1% rms
  • Power Supply
    100 to 240 VAC
  • Voltage
    1800 VDC

Physical Properties

  • Laser Head Dimension
    44.20 x 271.78 mm
  • Laser Head Weight
    0.92 lbs (0.42 kg)
  • Beam Diameter
    0.63 mm

Environmental Conditions

  • Relative Humidity
    0 to 100% (Non-Condensing)
  • Operating Temperature
    -40 to 70 °C
