HNL210L-JP

Laser by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The HNL210L-JP from Thorlabs Inc is a Laser with Wavelength 632.8 nm, Power 21 mW, Output Power (CW) 21 mW, Operating Temperature -40 to 70 Degree C, Storage Temperature -40 to 150 Degree C. More details for HNL210L-JP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HNL210L-JP
  • Manufacturer
    Thorlabs Inc
  • Description

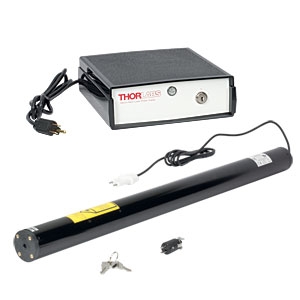

    HeNe Laser, 632.8 nm, 21 mW, Polarized, 100 VAC Power Supply Included

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Application
    Test & Measurement, DNA Sequencing, Metrology, Bio-Medical, Inspection & Measurement, Microscopy, Flow Cytometry
  • Operation Mode
    CW Laser
  • Wavelength
    632.8 nm
  • Power
    21 mW
  • Output Power (CW)
    21 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.15 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Helium-Neon
  • Laser Gain Medium
    Neutral Atom Gas Lasers
  • Current
    6.5 mA
  • Laser Class
    Class IIIb/3B
  • Warm up time
    20 min
  • Modulation Frequency
    30 Hz to 10 MHz
  • RMS Noise Power
    0.5% rms
  • Power Supply
    100 VAC
  • Voltage
    3800 VDC

Physical Properties

  • Weight
    2.6 lbs (1.2 kg)
  • Beam Diameter
    0.70 mm

Environmental Conditions

  • Relative Humidity
    0 to 100% (Non-Condesing)
  • Altitude
    Operating Altitude: 0 to 10000 ft, Storage Altitude: 0 to 70000 ft
  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 150 Degree C
