CTL 1500

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA Photonics.

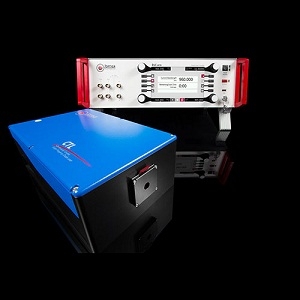

The CTL 1500 from TOPTICA Photonics is a Laser with Wavelength 1460 to 1570 nm, Power 50 mW, Output Power (CW) 50 mW, power at edge: 25 mW, Operating Temperature 15 to 30 Degree C, Storage Temperature 0 to 40 Degree C. More details for CTL 1500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CTL 1500
  • Manufacturer
    TOPTICA Photonics
  • Description
    Continuously Tunable Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy, Test & Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    1460 to 1570 nm
  • Spectral Width :
    linewidth: 10 kHz
  • Power
    50 mW
  • Output Power (CW)
    50 mW, power at edge: 25 mW
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    vertical
  • Transverse Mode
    TEM00
  • Power Consumption
    50 W
  • Interface
    Ethernet, USB
  • Power Supply
    100 to 120 V / 220 to 240 VAC, 50 to 60 Hz (auto detect)
  • Note
    Absolute accuracy: 150 pm, Max. scan speed: 10 nm/s

Physical Properties

  • Laser Head Dimension
    (90 mm x 150 mm x 250 mm), (90 mm x 150 mm x 370 mm)(H x W x D)
  • Laser Head Weight
    8.1 kg
  • Power Supply Dimension
    154 mm x 450 mm x 348 mm(H x W x D)
  • Power Supply Weight
    9 kg
  • Beam Area
    height: (50 ± 0.3) mm
  • Beam Diameter
    1 mm x 1 mm and 1 mm x 3 mm

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    0 to 40 Degree C
