FemtoFiber ultra 780

Note: Your Quotation Request will be directed to TOPTICA Photonics.

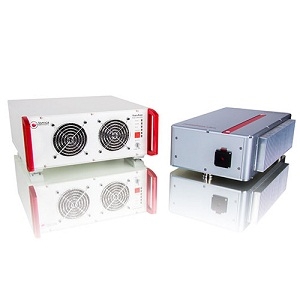

The FemtoFiber ultra 780 from Toptica Photonics is a femtosecond fiber laser system that provides an average power of more than 500 mW. It delivers laser pulses of less than 150 fs in duration at a central wavelength of 780 nm. The laser head measures

Product Specifications

View similar products

Product Details

  • Part Number
    FemtoFiber ultra 780
  • Manufacturer
    TOPTICA Photonics
  • Description
    Third Generation Powerful 780 nm femtosecond fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Medical, Scientific / Research
  • Application
    Bio-Medical, Microscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    780 nm
  • Power
    500 mW
  • Output Power (Pulsed)
    60 to 120 mW
  • Pulse Width
    150 fs
  • Repetition Rate
    80 MHz
  • Technology
    Mode-Locked Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Polarization Maintaining
  • Laser Color
    Red
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    300 W
  • Interface
    Ethernet, USB
  • Power Supply
    100 - 240 V AC, 50/60 Hz

Physical Properties

  • Laser Head Dimension
    111 x 250 x 380 mm³ (H x W x D)
  • Laser Head Weight
    15 kg
  • Power Supply Dimension
    154 x 342 x 382 mm³
  • Power Supply Weight
    10 kg
  • Beam Diameter
    1.1 mm

Environmental Conditions

  • Relative Humidity
    90 % (Non-Condensing)
  • Operating Temperature
    19 to 25 Degree C
  • Storage Temperature
    0 to 40 Degree C
