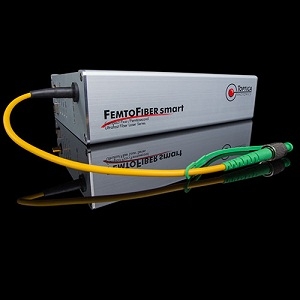

FemtoFYb 1030-400

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA Photonics.

The FemtoFYb 1030-400 from TOPTICA Photonics is a Laser with Wavelength 1030 nm, Power 0.5 mW, Output Power (Pulsed) 75 to 120 mW, Pulse Width 400 fs to 2 ps, Repetition Rate 30 MHz. More details for FemtoFYb 1030-400 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FemtoFYb 1030-400
  • Manufacturer
    TOPTICA Photonics
  • Description
    The FemtoFYb laser systems are fiber-based sub-picosecond oscillators for seeding industrial laser systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers, Femtosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Engraving, Marking, Surface Treatment, Metrology
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1030 nm
  • Wavelength Accuracy
    ± 1.5 nm
  • Spectral Width :
    4 nm
  • Power
    0.5 mW
  • Output Power (Pulsed)
    75 to 120 mW
  • Pulse Width
    400 fs to 2 ps
  • Repetition Rate
    30 MHz
  • Technology
    Solid State Laser, Mode-Locked Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode, Polarization Maintaining
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Yb:YAG
  • Laser Gain Medium
    Ytterbium Laser
  • Connectors
    FC
  • Power Consumption
    10 W
  • Interface
    USB
  • Voltage
    12 VDC

Physical Properties

  • Laser Head Dimension
    50 x 135 x 194 mm³ (H x W x D)
  • Laser Head Weight
    2 kg
  • Fiber length
    20 cm

Environmental Conditions

  • Relative Humidity
    90 % (Non-Condensing)
  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    0 to 40 Degree C
