iBeam smart PT 660

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA Photonics.

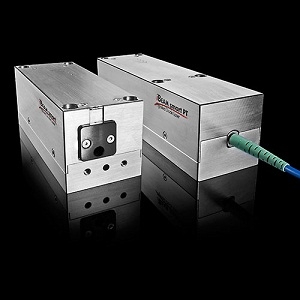

The iBeam smart PT 660 from TOPTICA Photonics is a Laser with Wavelength 660 nm, Power 75 mW, Output Power (CW) 75 mW, Operating Temperature 15 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for iBeam smart PT 660 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    iBeam smart PT 660
  • Manufacturer
    TOPTICA Photonics
  • Description
    iBeam smart PT standard wavelength with highest optical power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Microscopy, Flow Cytometry, Metrology, Inspection & Measurement, Imaging, Etching, 3D Printing, Spectroscopy, Interferometry
  • Operation Mode
    CW Laser
  • Wavelength
    660 nm
  • Wavelength Accuracy
    ±3 nm
  • Power
    75 mW
  • Output Power (CW)
    75 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode, Polarization Maintaining
  • Laser Color
    Red
  • Polarization Orientation
    Linear
  • Rise/Fall Time :
    1.5 ns
  • Connectors
    FC, SC
  • Current
    2 A
  • Laser Class
    Class IIIB
  • Warm up time
    5 min
  • Digital Modulation
    100 to 250 MHz
  • Analog Modulation
    1 MHz
  • Power Consumption
    6 to 18 W
  • Power Stability
    ± 2 %
  • RMS Noise Power
    2 % rms
  • Interface
    RS-232
  • Voltage
    12 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    40 x 40 x 145 mm3 (H x W x D)
  • Laser Head Weight
    250 g
  • Fiber length
    2 m

Environmental Conditions

  • Relative Humidity
    90 % (Non-Condensing)
  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
