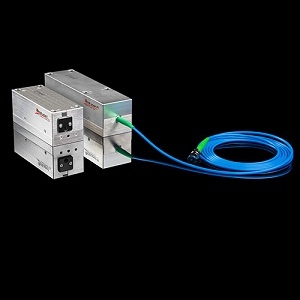

iBeam smart-S 660-S

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA Photonics.

The iBeam smart-S 660-S from TOPTICA Photonics is a Laser with Wavelength 660 nm, Power 90 to 130 mW, Output Power (CW) 90 to 130 mW, Operating Temperature 15 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for iBeam smart-S 660-S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    iBeam smart-S 660-S
  • Manufacturer
    TOPTICA Photonics
  • Description
    iBeam smart standard wavelengths with highest optical power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Microscopy, Flow Cytometry, Metrology, Inspection & Measurement, Imaging, Etching, 3D Printing, Spectroscopy, Interferometry
  • Operation Mode
    CW Laser
  • Wavelength
    660 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    90 to 130 mW
  • Output Power (CW)
    90 to 130 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Red
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Rise/Fall Time :
    1.5 ns
  • Beam Shape
    Circular
  • Current
    2 A
  • Laser Class
    Class IIIB
  • Warm up time
    5 min
  • Digital Modulation
    250 MHz
  • Analog Modulation
    1 MHz
  • Power Consumption
    6 to 18 W
  • Power Stability
    ±0.5 %
  • Pointing Stability :
    5 µrad/K
  • RMS Noise Power
    0.2 % rms
  • Interface
    RS-232
  • Voltage
    12 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    40 x 40 x 100 mm3 (H x W x D)
  • Laser Head Weight
    250 g
  • Beam Diameter
    1.2 mm

Environmental Conditions

  • Relative Humidity
    90 % (Non-Condensing)
  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
