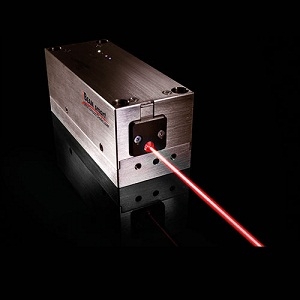

iBeam smart WS685-S-WS

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA Photonics.

The iBeam smart WS685-S-WS from TOPTICA Photonics is a Laser with Wavelength 685 nm, Power 45 mW, Output Power (CW) 45 mW, Operating Temperature 15 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for iBeam smart WS685-S-WS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    iBeam smart WS685-S-WS
  • Manufacturer
    TOPTICA Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Microscopy, Flow Cytometry, Metrology, Inspection & Measurement, Imaging, Etching, 3D Printing, Spectroscopy, Interferometry
  • Operation Mode
    CW Laser
  • Wavelength
    685 nm
  • Wavelength Accuracy
    ±1 nm
  • Spectral Width :
    25 MHz
  • Power
    45 mW
  • Output Power (CW)
    45 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Polarization Orientation
    Linear
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Circular
  • Current
    2 A
  • Laser Class
    Class IIIB
  • Power Consumption
    6 to 18 W
  • Power Stability
    ±0.5 %
  • Pointing Stability :
    10 µrad/K
  • Interface
    RS-232
  • Voltage
    12 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    40 x 40 x 100 mm3 (H x W x D)
  • Laser Head Weight
    250 g
  • Beam Diameter
    1.6 mm

Environmental Conditions

  • Relative Humidity
    90 % (Non-Condensing)
  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
