CL-1000-50-W

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

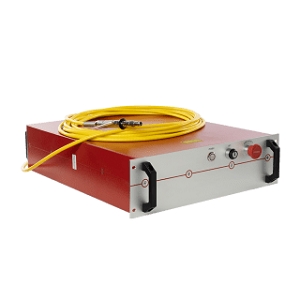

The CL-1000-50-W from VONJAN Technology is a Laser with Wavelength 1064 nm, Power 1000 W, Pulse Energy 50 mJ, Pulse Width 30 to 500 ns, Repetition Rate 10 to 400 kHz. More details for CL-1000-50-W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CL-1000-50-W
  • Manufacturer
    VONJAN Technology
  • Description
    1064 nm Near-Infrared 1000 W Pulsed Nanosecond Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive
  • Application
    Cleaning, Decoating
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    1000 W
  • Pulse Energy :
    50 mJ
  • Pulse Energy
    50 mJ
  • Pulse Width
    30 to 500 ns
  • Repetition Rate
    10 to 400 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Random
  • Current
    20 A
  • Laser Class
    Class 4
  • Power Consumption
    4000 W
  • Peak Power
    350 kW
  • Power Supply
    220 VAC
  • Note
    Power Tuning Range: 0 to 100%

Physical Properties

  • Package
    System
  • Dimension
    598 x 140 x 483 mm (W x D x H)
  • Weight
    40 kg
  • Fiber length
    10 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
