PS-IR-30-W-AIO

73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

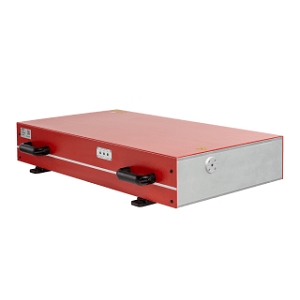

The PS-IR-30-W-AIO from VONJAN Technology is a Laser with Wavelength 1064 nm, Power 30 W, Pulse Energy 75 µJ, Pulse Width 10 ps, Repetition Rate 1 Hz to 1 MHz. More details for PS-IR-30-W-AIO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PS-IR-30-W-AIO
  • Manufacturer
    VONJAN Technology
  • Description
    1064 nm 30 W Near-Infrared DPSS Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific Research, Automotive
  • Application
    Marking, Engraving, Structuring, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    30 W
  • Pulse Energy :
    75 µJ
  • Pulse Energy
    75 µJ
  • Pulse Width
    10 ps
  • Repetition Rate
    1 Hz to 1 MHz
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Near-Infrared
  • Polarization
    Horizontal
  • Beam Quality Factor (M2) :
    <1.3
  • Gain Medium Type
    Solid State Laser
  • Current
    25 A
  • Power Consumption
    600 W
  • Peak Power
    7500 kW
  • Voltage
    24 VDC
  • Note
    Power instability: 2%

Physical Properties

  • Package
    System
  • Dimension
    416 x 732 x 140 mm (W x D x H)
  • Weight
    55 kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -15 to 50 Degree C
