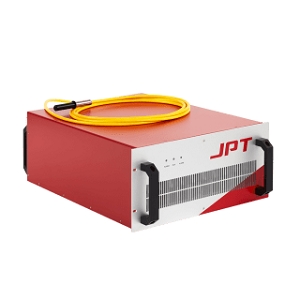

QCW-300/3000MM-A

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

The QCW-300/3000MM-A from VONJAN Technology is a Laser with Wavelength 1080 nm, Power 300 to 400 W, Pulse Energy 30 J, Pulse Width 0.01 to 10 ms, Operating Temperature 0 to 35 Degree C. More details for QCW-300/3000MM-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QCW-300/3000MM-A
  • Manufacturer
    VONJAN Technology
  • Description
    1080 nm Near-Infrared 300 to 400 W Pulsed, CW Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive
  • Application
    Drilling, Seam Welding, Cutting, Micro Welding, Spot Welding
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1080 nm
  • Power
    300 to 400 W
  • Pulse Energy :
    30 J
  • Pulse Energy
    30 J
  • Pulse Width
    0.01 to 10 ms
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Random
  • Modulation Frequency
    1 to 10000 Hz
  • Power Consumption
    2000 W
  • Peak Power
    3000 W
  • Voltage
    48 VDC
  • Note
    Beam Parameter Product: 3 mm x mrad, Power instability: 3%

Physical Properties

  • Package
    System
  • Dimension
    648 x 234 x 483 mm (W x D x H)
  • Weight
    65 kg
  • Fiber diameter
    50 µm
  • Fiber length
    10 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    0 to 35 Degree C
  • Storage Temperature
    -20 to 50 Degree C
