UV-3-A-AIO

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

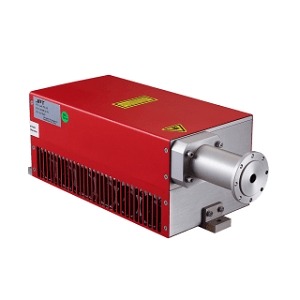

The UV-3-A-AIO from VONJAN Technology is a Laser with Wavelength 355 nm, Power 3 W, Pulse Energy 75 µJ, Pulse Width 26 ns, Repetition Rate 20 to 150 kHz. More details for UV-3-A-AIO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UV-3-A-AIO
  • Manufacturer
    VONJAN Technology
  • Description
    355 nm 3 W Ultraviolet DPSS Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific Research, Automotive
  • Application
    Marking, Structuring, Engraving, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    3 W
  • Pulse Energy :
    75 µJ
  • Pulse Energy
    75 µJ
  • Pulse Width
    26 ns
  • Repetition Rate
    20 to 150 kHz
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Solid State Laser
  • Current
    21 A
  • Power Consumption
    180 W
  • Peak Power
    6 kW
  • Voltage
    12 VDC
  • Note
    Power instability: 3%

Physical Properties

  • Package
    Benchtop
  • Dimension
    145 x 313 x 126 mm (W x D x H)
  • Weight
    6.2 kg
  • Beam Diameter
    0.45 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -15 to 50 Degree C
