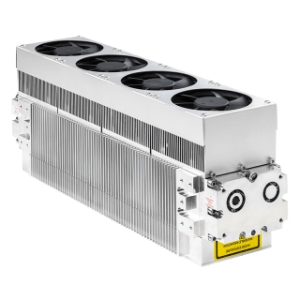

VJ-C30A [10.6]

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VONJAN Technology.

The VJ-C30A [10.6] from VONJAN Technology is a Laser with Wavelength 10600 nm, Power 30 W, Operating Temperature 5 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for VJ-C30A [10.6] can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VJ-C30A [10.6]
  • Manufacturer
    VONJAN Technology
  • Description
    10600 nm Infrared 30 W CO2 Molecular Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive
  • Application
    Marking, Engraving, Cutting
  • Operation Mode
    CW Laser
  • Wavelength
    10600 nm
  • Power
    30 W
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    CO2
  • Laser Gain Medium
    Molecular Laser
  • Current
    12.5 A
  • Modulation Frequency
    1 to 25 kHz
  • Power Consumption
    600 W
  • Voltage
    48 VDC

Physical Properties

  • Package
    Benchtop
  • Dimension
    91.5 x 357 x 140 mm (W x D x H)
  • Weight
    6.6 kg
  • Beam Diameter
    1.8 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    5 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
