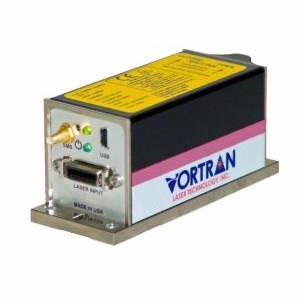

Stradus 785-80

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Vortran Laser Technology.

The Stradus 785-80 from Vortran Laser Technology is a Laser with Wavelength 785 nm, Power 80 mW, Output Power (CW) 80 mW, Operating Temperature 10 to 45 Degree C, Storage Temperature -10 to 60 Degree C. More details for Stradus 785-80 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Stradus 785-80
  • Manufacturer
    Vortran Laser Technology

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Medical, Scientific / Research
  • Application
    Laser Surgery, Dermatology, Oncology, Ophthalmology, Bio-Medical, Spectroscopy, Atomic & Molecular Physics, Sensing
  • Operation Mode
    CW Laser
  • Wavelength
    785 nm
  • Wavelength Accuracy
    ± 10 nm
  • Power
    80 mW
  • Output Power (CW)
    80 mW
  • Technology
    Direct Diode Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.6 to 1.0 mrad
  • Beam Quality Factor (M2) :
    1.25
  • Rise/Fall Time :
    0.7 µs (Analog), 2 nsec (Digital)
  • Current
    1.5 A
  • Laser Class
    Class IIIb
  • Modulation Frequency
    500 kHz (Analog), 200 MHz (Digital)
  • Pointing Stability :
    5 µrad/ Degree C
  • RMS Noise Power
    0.2% rms
  • Power Supply
    90-250 VAC, 50/60 Hz
  • Voltage
    12 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Weight
    210 g
  • Beam Diameter
    1.0 to 1.4 mm

Environmental Conditions

  • Operating Temperature
    10 to 45 Degree C
  • Storage Temperature
    -10 to 60 Degree C
