TECIRL-780

Laser by World Star Tech
136 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to World Star Tech.

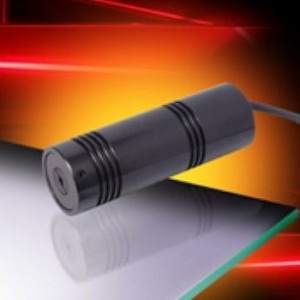

The TECIRL-780 from World Star Tech is a Laser with Wavelength 780 nm, Power 50 mW, Output Power (CW) 50 mW, Operating Temperature 10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for TECIRL-780 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TECIRL-780
  • Manufacturer
    World Star Tech
  • Description
    TECIRL-Series Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Inspection & Measurement, Test & Measurement, Microscopy
  • Operation Mode
    CW Laser
  • Wavelength
    780 nm
  • Power
    50 mW
  • Output Power (CW)
    50 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Beam Divergence :
    0.5 mrad
  • Current
    1 A
  • Warm up time
    1 Minute
  • Pointing Stability :
    ± 10 µrad
  • RMS Noise Power
    0.5% RMS
  • Voltage
    3.3 VDC
  • Note
    Beam Size: 5 mm

Physical Properties

  • Dimension
    1 x 3 inch(D x L)

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
