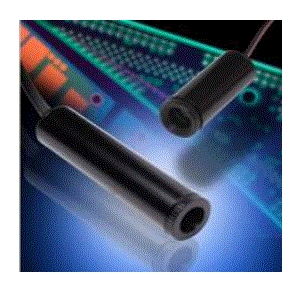

UH5-70G-830

Laser by World Star Tech
136 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to World Star Tech.

The UH5-70G-830 from World Star Tech is a Laser with Wavelength 830 nm, Power 70 mW, Output Power (CW) 70 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for UH5-70G-830 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UH5-70G-830
  • Manufacturer
    World Star Tech
  • Description
    UH Series Infra Red Laser Diode Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Test & Measurement, Inspection & Measurement, Alignment
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Power
    70 mW
  • Output Power (CW)
    70 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Beam Divergence :
    0.5 mrad
  • Current
    200 mA
  • Laser Class
    Class IIIB
  • Pointing Stability :
    50 µrad
  • RMS Noise Power
    0.5% RMS
  • Voltage
    3.3 to 5 VDC
  • RoHS
    Yes
  • Note
    Spot Size: Adjustable Or Collimated (5mm), Minimum Spot Size: 120µm at 10”distance, Cable: 200mm

Physical Properties

  • Dimension
    12 x 51 mm(D x L)

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
