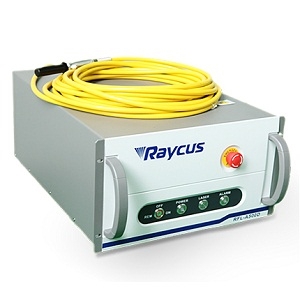

RFL-A2000D

Laser by Raycus

Note: Your Quotation Request will be directed to Raycus.

The RFL-A2000D from Raycus is a Laser with Power 2000 W, Wavelength 910 to 920 nm. More details for RFL-A2000D can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RFL-A2000D
  • Manufacturer
    Raycus
  • Description
    Fiber Delivered Direct Diode Laser from 910 to 920 nm

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Technology
    Direct Diode Laser
  • Operation Mode
    CW Laser
  • Application
    Welding, Cladding
  • Power
    2000 W
  • Wavelength
    910 to 920 nm
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental
  • Beam Divergence :
    0.22 rad
  • Modulation Frequency
    20 to 50 kHz
  • Power Consumption
    5000 W
  • Interface
    RS232/AD
  • Power Supply
    380 V

Physical Properties

  • Dimension
    650 x 900 x 980 mm
  • Fiber diameter
    600 um
  • Fiber length
    20 m

Environmental Conditions

  • Cooling Method
    Water Cooling
Click to view more product details on manufacturer's website
