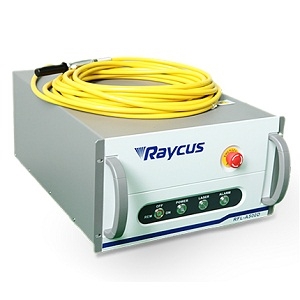

RFL-A80D

Laser by Raycus

Note: Your Quotation Request will be directed to Raycus.

The RFL-A80D from Raycus is a Laser with Wavelength 905 to 925 nm, Power 80 W, Output Power (CW) 80 W, Operating Temperature 0 to 40 Degree C. More details for RFL-A80D can be seen below.

 Product Specifications

    Product Details

    • Part Number :
      RFL-A80D
    • Manufacturer :
      Raycus
    • Description :
      Fiber Delivered Direct Diode Laser from 905 to 925 nm

    General Parameters

    • Configuration :
      Laser Head with Control Unit (Integrated)
    • Type :
      Laser System
    • Technology :
      Direct Diode Laser
    • Operation Mode :
      CW Laser
    • Wavelength :
      905 to 925 nm
    • Tunable :
      Yes
    • Fiber Coupled :
      Yes
    • Laser Color :
      Infrared
    • Power :
      80 W
    • Output Power (CW) :
      80 W
    • Application :
      Laser Soldering and Plastic Laser Welding, Heat Conduction Welding with Low Material Thickness, Quenching and Cladding
    • Application Industry :
      Welding, Cladding
    • Power Stability :
      0.01
    • Interface :
      SMA905/D80
    • Power Supply :
      200 to 240 V

    Physical Properties

    • Fiber diameter :
      105 um

    Environmental Conditions

    • Cooling Method :
      Forced Air
    • Operating Temperature :
      0 to 40 Degree C
