RFL-C1000

Laser by Raycus

Note: Your Quotation Request will be directed to Raycus.

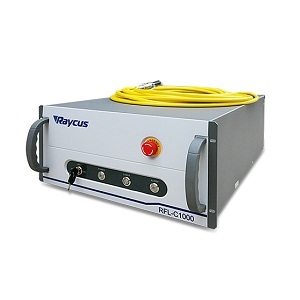

The RFL-C1000 from Raycus is a Single Mode CW Fiber Laser that operates at a wavelength of 1080 nm. It delivers an output power of 1000 W with a power stavility of 3%. The laser has a modulation frequency of 5 kHz, higher electro-optical conversion efficiency, and stable optical quality. It consumes up to 4000 W of power. The laser is available in a module that measures 485 x 240 x 765 mm and is ideal for cutting, welding, holing, and medical device processing.

Product Specifications

View similar products

Product Details

  • Part Number
    RFL-C1000
  • Manufacturer
    Raycus
  • Description
    Single Mode CW Fiber Laser with an Output Wavelength of 1080 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Welding, Drilling, Material processing
  • Operation Mode
    CW Laser
  • Wavelength
    1075 to 1085 nm
  • Power
    1000 W
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    5 kHz
  • Power Consumption
    4000 W
  • Interface
    RS232/AD
  • Power Supply
    340 to 420 V

Physical Properties

  • Dimension
    485 x 240 x 765 mm
  • Weight
    50 kg
  • Fiber length
    20 m

Environmental Conditions

  • Cooling Method
    Water Cooling
  • Operating Temperature
    10 to 40 Degree C

Technical Documents
