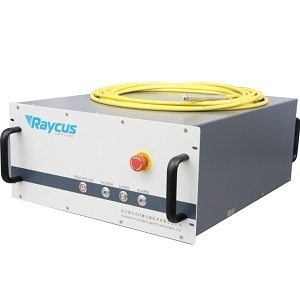

RFL-C200L

Laser by Raycus
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Raycus.

The RFL-C200L from Raycus is a Laser with Wavelength 1075 to 1085 nm, Power 170 W, Operating Temperature 10 to 40 Degree C, Storage Temperature -10 to 60 Degree C. More details for RFL-C200L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RFL-C200L
  • Manufacturer
    Raycus
  • Description
    Continuous-Wave Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Cutting, Welding, 3D Printing
  • Operation Mode
    CW Laser
  • Wavelength
    1075 to 1085 nm
  • Power
    170 W
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    50 Hz to 50 kHz
  • Power Consumption
    800 W
  • Interface
    RS232/AD/Ethernet
  • Power Supply
    220 V

Physical Properties

  • Dimension
    485 x 237 x 663 mm
  • Weight
    50 kg
  • Fiber diameter
    25 um
  • Fiber length
    15 m

Environmental Conditions

  • Cooling Method
    Water Cooling
  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
