RFL-C500

Laser by Raycus
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Raycus.

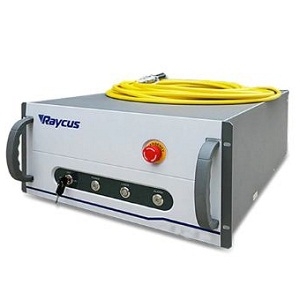

The RFL-C500 from Raycus is a Laser with Wavelength 1075 to 1085 nm, Power 500 W, Operating Temperature 10 to 40 Degree C. More details for RFL-C500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RFL-C500
  • Manufacturer
    Raycus
  • Description
    Single Module CW Fiber Lasers from 1075 to 1085 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Welding, Drilling, Material processing
  • Operation Mode
    CW Laser
  • Wavelength
    1075 to 1085 nm
  • Power
    500 W
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    20 kHz
  • Power Consumption
    2000 W
  • Interface
    RS232/AD
  • Power Supply
    200 to 240 V

Physical Properties

  • Dimension
    485 x 240 x 680 mm
  • Weight
    50 kg
  • Fiber length
    15 m

Environmental Conditions

  • Cooling Method
    Water Cooling
  • Operating Temperature
    10 to 40 Degree C

Technical Documents
