FemtoYL-40/20

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wuhan Yangtze Soton Laser.

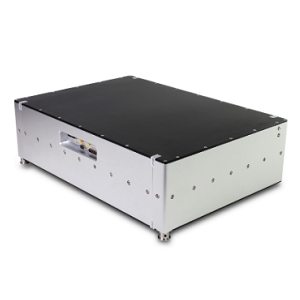

The FemtoYL-40/20 from Wuhan Yangtze Soton Laser is a Laser with Wavelength 1035 nm, Power 20 to 40 W, Pulse Energy 40 to 240 µJ, Pulse Width 400 fs to 10 ps, Repetition Rate 25 kHz to 5 MHz. More details for FemtoYL-40/20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FemtoYL-40/20
  • Manufacturer
    Wuhan Yangtze Soton Laser
  • Description
    20 to 40 W 1035 nm Near-Infrared Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers, Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Glass Welding, Refractive Index Modification, Two Photon Polymerization, Thin Film Material Cutting & Drilling, Biochips Manufacturing, Medical Device Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1035 nm
  • Power
    20 to 40 W
  • Pulse Energy :
    40 to 240 µJ
  • Pulse Energy
    40 to 240 µJ
  • Pulse Width
    400 fs to 10 ps
  • Repetition Rate
    25 kHz to 5 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Linear
  • Beam Divergence :
    <2 mrad
  • Beam Quality Factor (M2) :
    <1.3
  • Connectors
    SMA
  • Laser Class
    Class 4
  • Power Consumption
    >960 W
  • Power Stability
    <2%
  • Interface
    RS232, DB25
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Note
    Number of Burst Pulse: 1 to 10, Signal: TTL

Physical Properties

  • Package
    Benchtop
  • Dimension
    680 x 410 x 131 mm
  • Beam Diameter
    2 mm
